WSAHP 02 Honeycomb Composite Panels , Light Weight Honeycomb Panels

Name: WSAHP 02 Honeycomb Composite Panels Light Weight Honeycomb Panels
Brand: WILLSTRONG
Price: 1 USD

Brand Name : WILLSTRONG

Place of Origin : CHINA

MOQ : 600m2

Supply Ability : 10000M2/MONTH

Delivery Time : 15days

Packaging Details : protective film

Price : discussed

Payment Terms : L/C, D/A, D/P

Model Number : WSAHP 02

Certification : ISO 14001

material : ALUMINIUM

size : 1500*6000*10MM(standard)

thickness : 10/15/20/25/30/35MM totally

processing : grooving/bending/curve

shape : triangle/square

application : ship/facade/air plane/car

Contact Now

Aluminum Honeycomb Panel Ahp for Architectural Facades Panels

WILLSTRONG® AHP is an innovative composite materials in sandwich structure, composed of two thin aluminium cover sheets and hexagonal aluminium core, laminated under hot pressure by aviation-grade adhesive agent.

Item	Standard Specification
Face Material	Material: Al-mg-mn alloy , Copper, Zinc and Stainless Steel, etc
Face Material	Thickness:0.7mm or 1.0mm(other options are available)
Back Material	Material: Al-mg-mn alloy Copper, Zinc and Stainless Steel, etc
Back Material	Thickness:0.7mm or 1.0mm(other options are available)
CORE	Material: Aluminum Honeycomb Core
	Thickness:0.075mm(other options are available)
	Bore:4mm or 19mm
Adhesive	Adhesive film
Surface	PVDF Coating, PET Coating (other options are available)
Size	Length≤6000mm(other options are available)
	Width≤1500mm(other options are available)
	Thickness:6mm,12mm,20mm,25mm,35mm
Weight	5.00~7.5kg/m2
Color	WILLSTRONG color chart or Customized
FR	GBT 8624-2006 Grade : Bs1,d0,t0

Advantages
Physical Performance	Excellent high rigidity, bending strength, light weight, perfect flatness, sound insulation, hot insulation, good machinability .
Shapes	Non-plane panel is possible, no need further process.
Varies of Dimension	Big size, up to 1500mm*6000mm
Durability	Excellent quality, durable for 20 years or more
Fireproof performance	non-combustible
Installation	Single panel independently dismounting ,easy for fabrication ,installation and maintain .
Jointing	Open style and closed style

Application

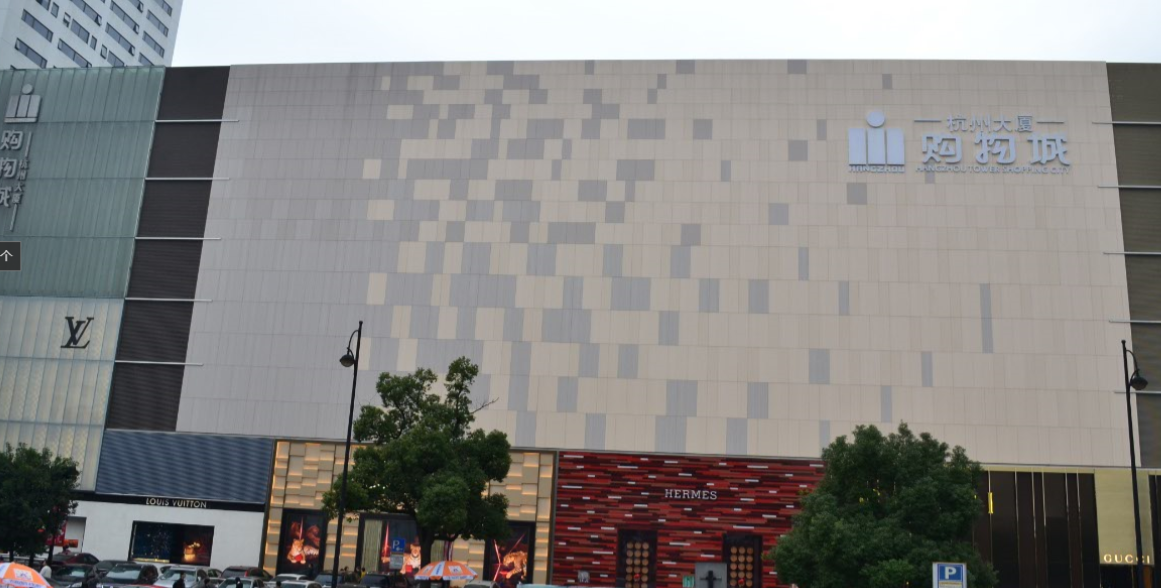

1	Wall Cladding System , interior and exterior

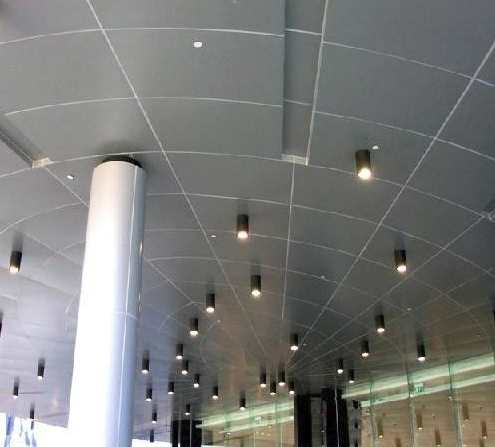

2	Roof , Ceiling , Partitions materials
3	Lift and Elevator decoration material
4	Train and high speed subway, material of boat and motor homes
5	Furniture material
